Report 09/2018: Freight train derailment at Ely West Junction
RAIB has today released its report into a freight train derailment at Ely West Junction, 14 August 2017.

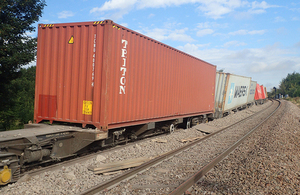

Part of the derailed train at Ely West Junction
Summary
At 14:21 hrs on Monday 14 August 2017, the rear 12 wagons of a freight train carrying containers derailed at Ely West Junction on the line between Ely and March. The train was travelling at 41 mph (66 km/h) at the time of the derailment. It ran derailed for approximately 350 metres, causing significant damage to the infrastructure.
The first wagon to derail was an FEA-A wagon fitted with Y33 bogies. The derailment occurred because the damping on the bogies of this wagon was ineffective. The damping had become ineffective because the damping components, which had been on the wagon since it was built in 2003, had been managed to incorrect maintenance limits. The limits did not account for future wear in the period before the next maintenance intervention and were also not compatible with the design intent of the damping system. In addition, the maintenance interventions since a General Repair in 2010 (the last time when these components had been measured) were ineffective in identifying the worn state of the components. It is also probable that the company responsible for the maintenance of the wagon did not appropriately validate the General Repair maintenance specification used in 2010 to confirm that it would ensure continued safe operation up to the next planned General Repair due in 2017.
The fleet of wagons has since gone through General Repair and all of the damping components have been replaced.
Recommendations
The RAIB has made one recommendation to the company responsible for the maintenance of the wagons to review its maintenance documentation to ensure that the bogies on its freight wagons remain adequately damped at all times. In addition, the RAIB has identified three learning points. The first reminds those responsible for updating maintenance instructions that repair limits quoted in guidelines or by manufacturers should not be used as maintenance limits as this provides no future operational life. The second learning point reminds Entities in Charge of Maintenance that they should have a validated system of maintenance that ensures that the vehicles for which they are in charge remain safe for operation. The final learning point reminds maintainers of this type of bogie that some of them are fitted with an inspection window to allow the damping system components to be visually examined.
Notes to editors
- The sole purpose of RAIB investigations is to prevent future accidents and incidents and improve railway safety. RAIB does not establish blame, liability or carry out prosecutions.
- RAIB operates, as far as possible, in an open and transparent manner. While our investigations are completely independent of the railway industry, we do maintain close liaison with railway companies and if we discover matters that may affect the safety of the railway, we make sure that information about them is circulated to the right people as soon as possible, and certainly long before publication of our final report.
