EMHP wastewater monitoring of SARS-CoV-2 in England: 1 June to 20 September 2021

Published 28 October 2021

Applies to England

Data showing the concentration of SARS-CoV-2 RNA detected in wastewater by the Environmental Monitoring for Health Protection (EMHP) wastewater monitoring programme.

Background on the EMHP wastewater monitoring programme

People infected with COVID-19 shed the virus during daily activities such as going to the toilet and blowing noses. The virus enters the sewer system through sinks, drains and toilets. Fragments of the SARS-CoV-2 virus (the virus that causes COVID-19) can be detected in samples of wastewater (untreated sewage).

The EMHP programme, led by the UK Health Security Agency (UKHSA), tests sewage for fragments of SARS-CoV-2 RNA. Untreated influent samples are taken from approximately 270 sewage treatment works (STWs) in England, 4 times a week (see figures 1 to 9). EMHP also samples from sewer network sites (manholes). Data from sewer network sites is not included in this publication as these sites generally fall within Sewage Treatment Work (STW) catchments. Further detail about EMHP wastewater coverage can be found in the publication Wastewater testing coverage data for the EMHP programme.

The programme helps identify where the virus is circulating in England, detecting spikes in prevalence and presence of variants. Findings are reported to national decision makers and local stakeholders on a regular basis, helping to inform national strategy and localised action. Wastewater analysis has the benefit of detecting the virus regardless of whether people have symptoms or whether they have a test. Wastewater monitoring complements other testing programmes and public health actions to help protect against the threat of new variants.

As the threat of variants has emerged, the programme plays an important role in the detection of mutations of the virus, variants of concern (VOCs), and variants under investigation (VUIs). This is achieved through genomic sequencing of wastewater samples, to provide an indication of where VOCs and VUIs may be present across England. Insights from wastewater monitoring are shared with local and national decision makers, to help inform the action that they can take to stop further transmission.

The programme is led by UKHSA and run in partnership with the Department for Environment, Food and Rural Affairs (Defra), the Environment Agency (EA), the Centre for Environment, Fisheries and Aquaculture Science, academia (Cefas), and water companies. It provides coverage of approximately 40 million people across England. The EMHP team coordinates with programmes in the devolved administrations to provide UK-wide wastewater monitoring.

EMHP advises caution when directly comparing data between STWs and concentration of SARS-CoV-2 RNA in wastewater with clinical testing data. Interpretation should be made with careful consideration of the points in the Uncertainty, data quality and revisions section.

EMHP sampling sites

EMHP sample at sewer network sites (manholes in the street which generally serve a local area) and STWs (which generally serve wider areas such as a city or town). Associated with every STWs and sewer network site is a catchment, the geographical area from which wastewater flows into the sampling location. This publication reports data from STWs. Data from sewer networks is not included because sewer network sites almost always fall within the catchment of an STW. In addition, EMHP changes sampling strategy and locations of sewer network sites to meet epidemiological priorities (for example to support local public health responses).

Figures 1 to 9 show the location of STWs EMHP sample in each region.

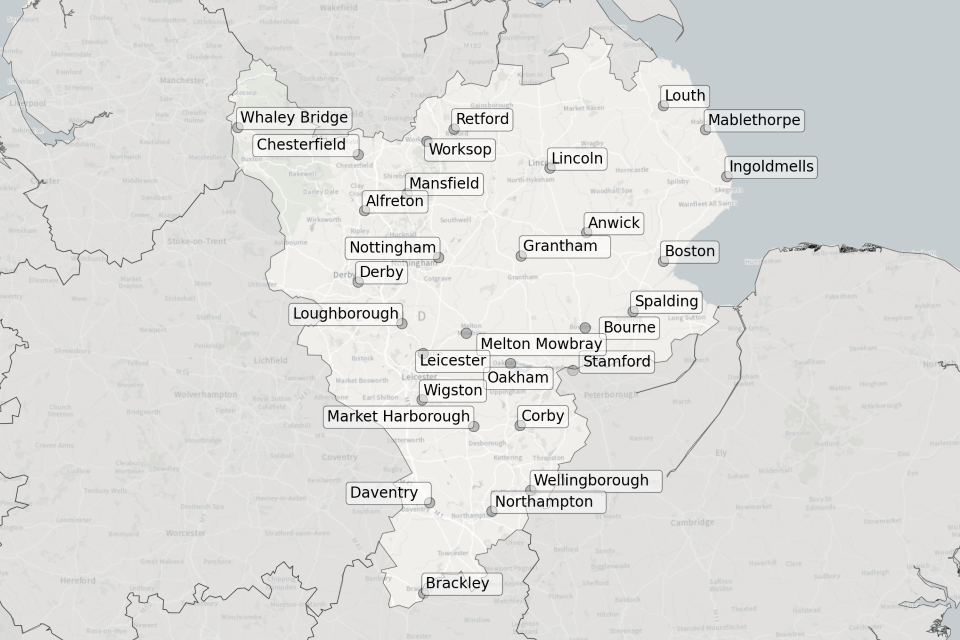

Figure 1. Map showing the location of sewage treatment works sampled in the East Midlands.

Location of STWs sampled in the East Midlands:

• Alfreton
• Anwick
• Boston
• Bourne
• Brackley
• Chesterfield
• Corby
• Daventry
• Derby
• Grantham
• Ingoldmells
• Leicester
• Lincoln
• Loughborough
• Louth
• Mablethorpe
• Market Harborough
• Mansfield
• Melton Mowbray
• Northampton
• Nottingham
• Oakham
• Retford
• Spalding
• Stamford
• Wellingborough
• Whaley Bridge
• Wigston
• Worksop

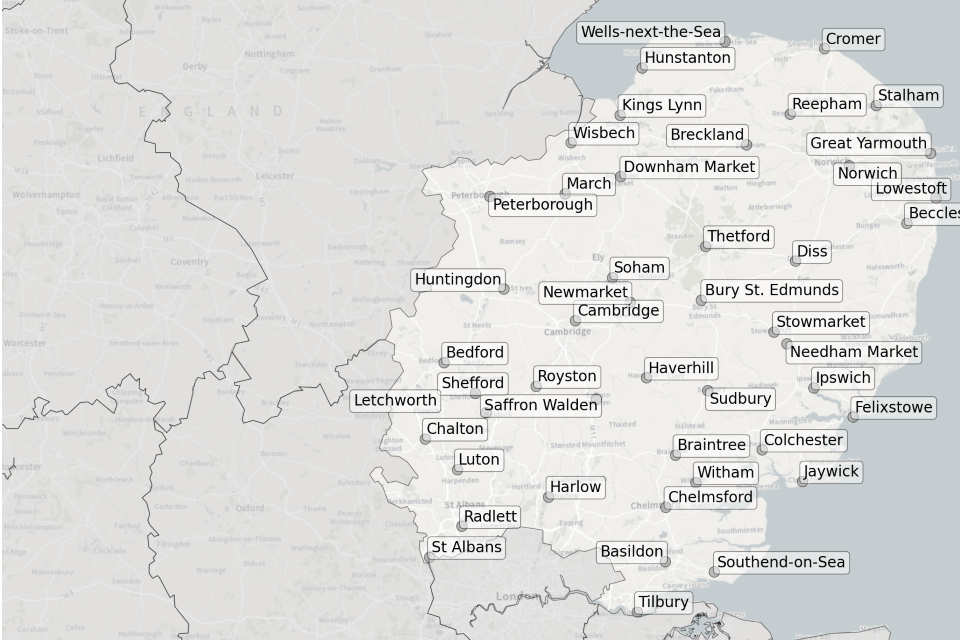

Figure 2. Map showing the location of sewage treatment works sampled in the East of England.

Location of STWs sampled in the East of England:

• Basildon
• Beccles
• Bedford
• Braintree
• Breckland
• Bury St Edmunds
• Cambridge
• Chalton
• Chelmsford
• Colchester
• Cromer
• Diss
• Downham Market
• Felixstowe
• Great Yarmouth
• Harlow
• Haverhill
• Hunstanton
• Huntingdon
• Ipswich
• Jaywick
• Kings Lynn
• Letchworth
• Lowestoft
• Luton
• March
• Needham Market
• Newmarket
• Norwich
• Peterborough
• Radlett
• Reepham
• Royston
• Saffron Walden
• Shefford
• Soham
• St Albans
• Stalham
• Stowmarket
• Sudbury
• Southend-on-Sea
• Thetford
• Tilbury
• Wells-next-the-Sea
• Wisbech
• Witham

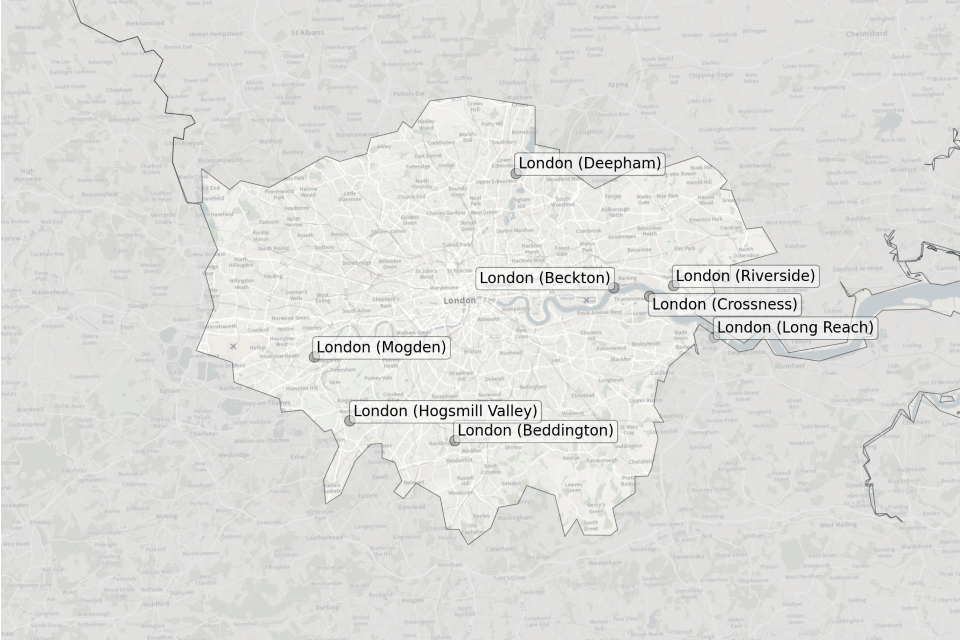

Figure 3. Map showing the location of sewage treatment works sampled in London.

Location of STWs sampled in London:

• Beckton
• Beddington
• Crossness
• Deepham
• Hogsmill Valley
• Long Reach
• Mogden
• Riverside

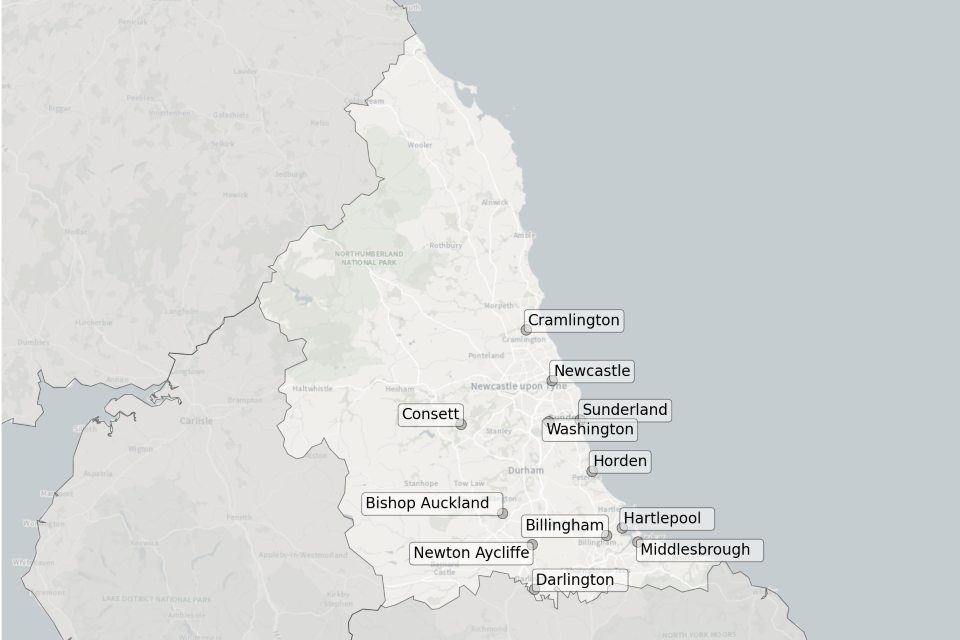

Figure 4. Map showing the location of sewage treatment works sampled in the North East.

Location of STWs sampled in the North East:

• Billingham
• Bishop Auckland
• Consett
• Cramlington
• Darlington
• Hartlepool
• Horden
• Middlesbrough
• Newcastle
• Newton Aycliffe
• Sunderland
• Washington

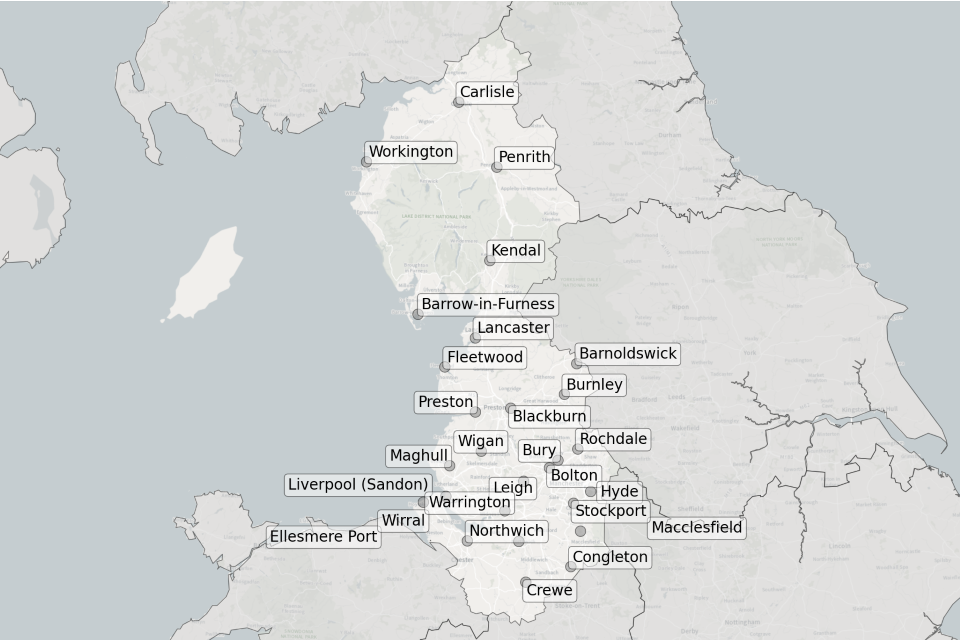

Figure 5. Map showing the location of sewage treatment works sampled in the North West.

Location of STWs sampled in the North West:

• Barnoldswick
• Barrow-in-Furness
• Blackburn
• Bolton
• Burnley
• Bury
• Carlisle
• Congleton
• Crewe
• Ellesmere Port
• Fleetwood
• Hyde
• Kendal
• Lancaster
• Leigh
• Liverpool (Sandon)
• Macclesfield
• Maghull
• Northwich
• Penrith
• Preston
• Rochdale
• Stockport
• Warrington
• Wigan
• Wirral
• Workington

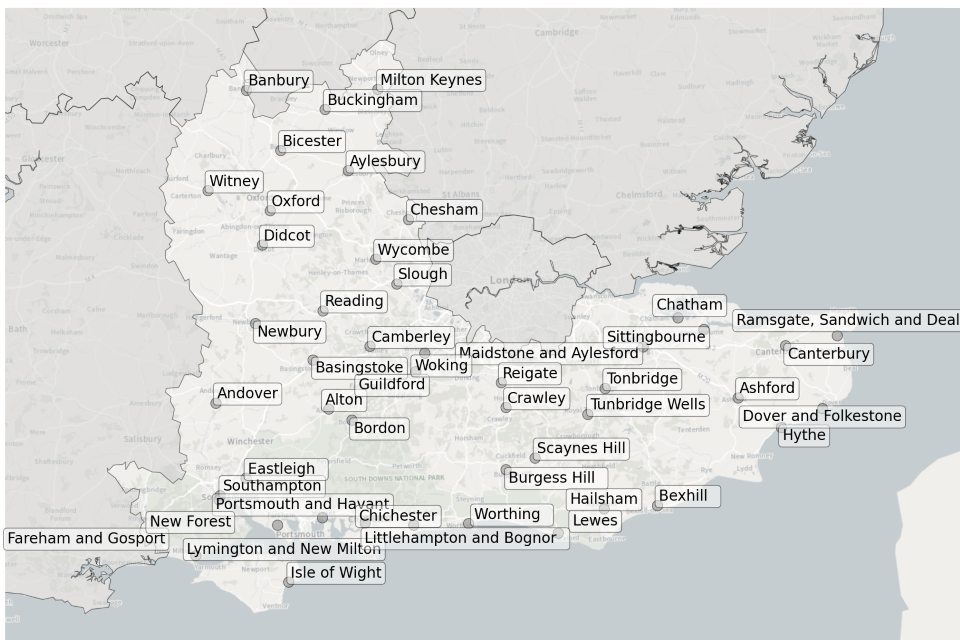

Figure 6. Map showing the location of sewage treatment works sampled in the South East.

Location of STWs sampled in the South East:

• Andover
• Alton
• Ashford
• Aylesbury
• Banbury
• Basingstoke
• Bexhill
• Bicester
• Bordon
• Buckingham
• Burgess Hill
• Camberley
• Canterbury
• Chatham
• Chesham
• Chichester
• Crawley
• Didcot
• Dover and Folkestone
• Eastleigh
• Fareham and Gosport
• Guildford
• Hailsham
• Hythe
• Isle of Wight
• Lewes
• Littlehampton and Bognor
• Lymington and New Milton
• Maidstone and Aylesford
• Milton Keynes
• Newbury
• New Forest
• Oxford
• Portsmouth and Havant
• Ramsgate, Sandwich and Deal
• Reading
• Reigate
• Scaynes Hill
• Sittingbourne
• Slough
• Southampton
• Tonbridge
• Tunbridge Wells
• Witney
• Woking
• Worthing
• Wycombe

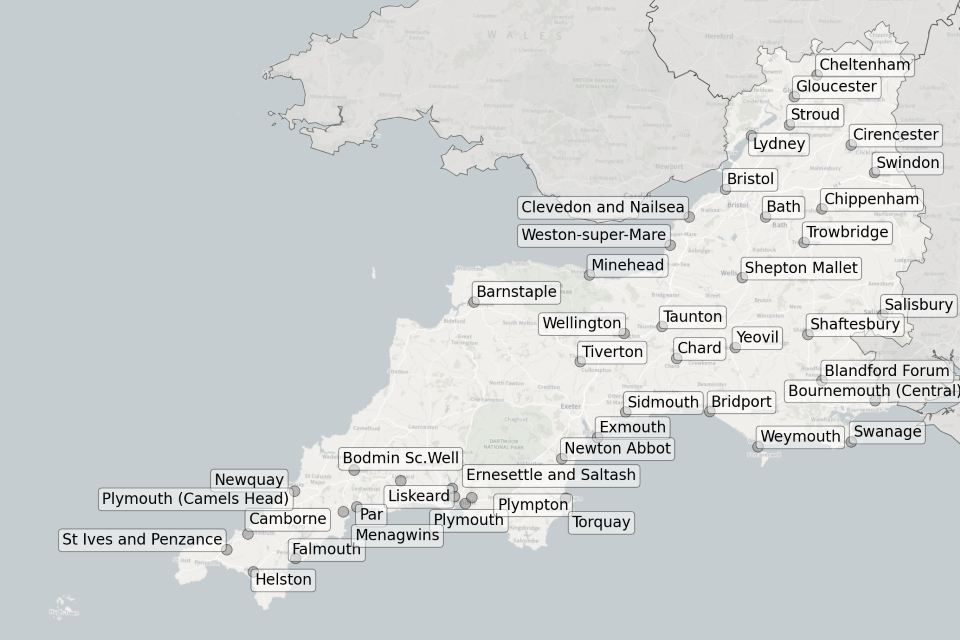

Figure 7. Map showing the location of sewage treatment works sampled in the South West.

Location of STWs sampled in the South West:

• Barnstaple
• Bath
• Blandford Forum
• Bodmin Sc Well
• Bournemouth (Central)
• Bridport
• Bristol
• Camborne
• Chard
• Cheltenham
• Chippenham
• Cirencester
• Clevedon and Nailsea
• Ernesettle and Saltash
• Exmouth
• Falmouth
• Gloucester
• Helston
• Liskeard
• Lydney
• Menagwins
• Minehead
• Newquay
• Newton Abbot
• Par
• Plymouth (Camels Head)
• Plymouth
• Plympton
• Salisbury
• Shaftesbury
• Shepton Mallet
• Sidmouth
• St Ives and Penzance
• Stroud
• Swanage
• Swindon
• Taunton
• Tiverton
• Torquay
• Trowbridge
• Wellington
• Weston-super-Mare
• Weymouth
• Yeovil

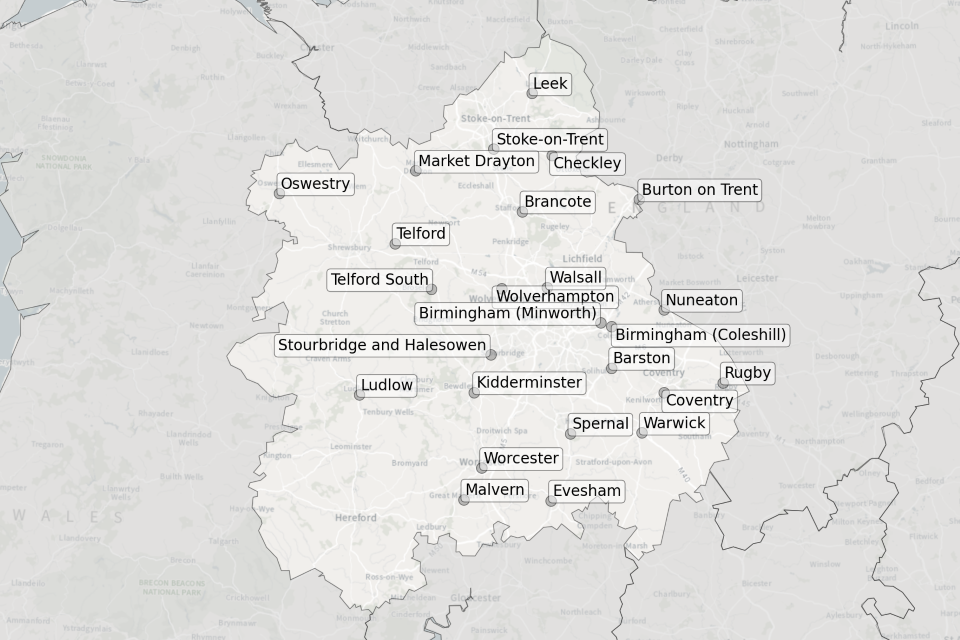

Figure 8. Map showing the location of sewage treatment works sampled in the West Midlands.

Location of STWs sampled in the West Midlands:

• Barston
• Brancote
• Checkley
• Birmingham (Coleshill)
• Birmingham (Minworth)
• Burton on Trent
• Coventry
• Evesham
• Kidderminster
• Leek
• Ludlow
• Malvern
• Market Drayton
• Nuneaton
• Oswestry
• Rugby
• Spernal
• Stoke-on-Trent
• Stourbridge and Halesowen
• Telford
• Telford South
• Walsall
• Warwick
• Wolverhampton
• Worcester

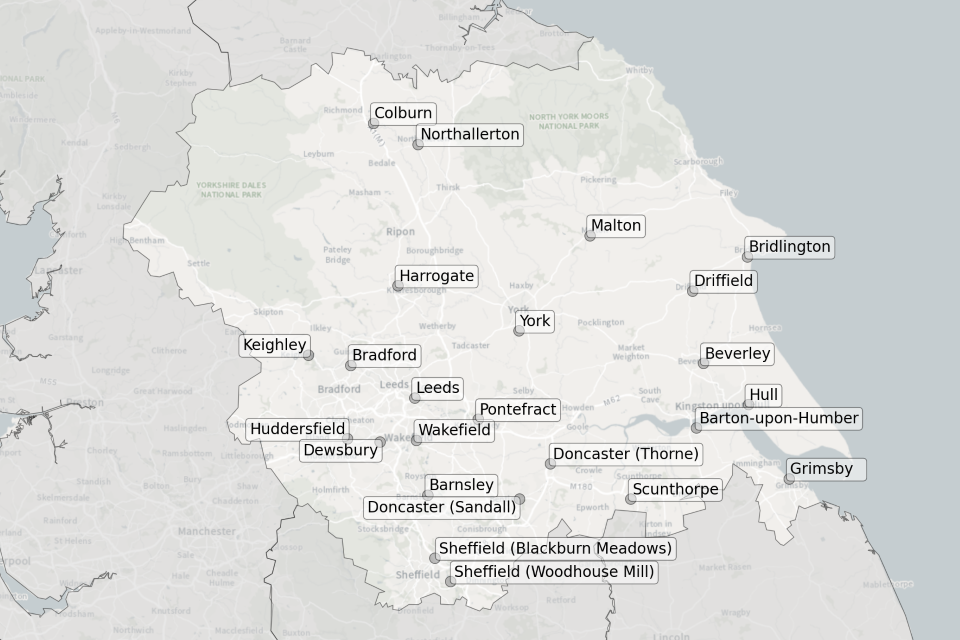

Figure 9. Map showing the location of sewage treatment works sampled in Yorkshire and the Humber.

Location of STWs sampled in Yorkshire and the Humber:

• Barnsley
• Barton-upon-Humber
• Beverley
• Bradford
• Bridlington
• Colburn
• Dewsbury
• Doncaster (Thorne)
• Doncaster (Sandall)
• Driffield
• Grimsby
• Harrogate
• Huddersfield
• Hull
• Keighley
• Leeds
• Malton
• Northallerton
• Pontefract
• Scunthorpe
• Sheffield (Blackburn Meadows)
• Sheffield (Woodhouse Mill)
• Wakefield
• York

Concentration of SARS-CoV-2 RNA in wastewater samples

EMHP wastewater concentration data from 1 June to 20 September 2021 is available in the accompanying spreadsheet. The spreadsheet includes data from previous months’ publications, along with the latest September data. The most recent 4 weeks of data is visualised in figures 10 and 11; England concentration map. Note that STWs are omitted from figures 10 and 11 if no samples were taken during the week.

In the week beginning 24 August, 185 of 260 STWs (71%) had lower average concentrations compared to the previous week. In the week beginning 31 August, 146 of 265 STWs (55%) had higher average concentrations compared to the previous week. In the week beginning 7 September, 181 of 267 STWs (68%) showed a decrease in weekly average concentration. In the week beginning 14 September, 176 of 268 STWs (66%) had a decrease in the average concentrations relative to previous week. Furthermore, any interpretation should be made with careful consideration of the points in the Uncertainty, data quality and revisions section below.

Since the start of September 2021 there has been evidence that SARS-CoV-2 RNA measured by EMHP in wastewater has been diverging from reported clinical data. While the factors driving this divergence are uncertain, EMHP is exploring a number of hypotheses to understand this.

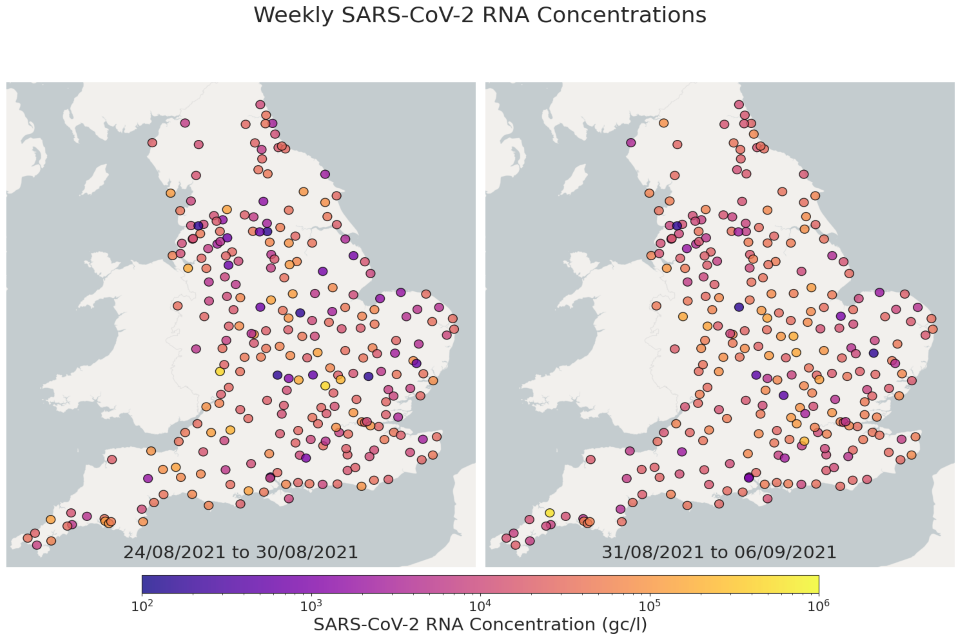

Figure 10. England concentration map: map showing the location of sewage treatment works sampled. Colour indicates the weekly-average SARS-CoV-2 RNA concentration (gene copies/litre) in the first 2 weeks.

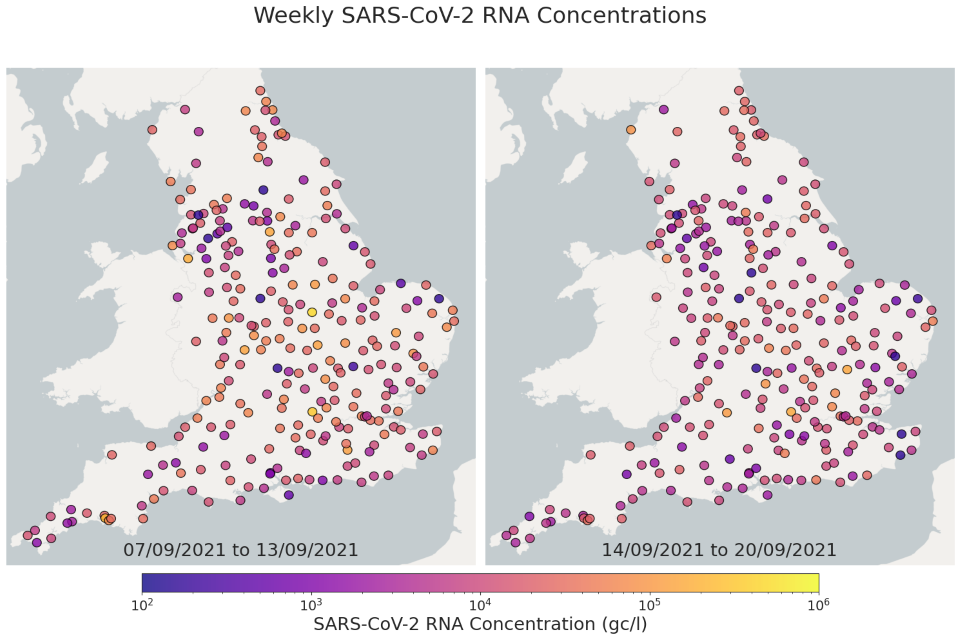

Figure 11. England concentration map: map showing the location of sewage treatment works sampled. Colour indicates the weekly-average SARS-CoV-2 RNA concentration (gene copies/litre) in the last 2 weeks.

See regional maps for the names of each STW.

Regional average concentration of SARS-CoV-2 RNA in wastewater

The concentration of SARS-CoV-2 RNA in wastewater increased in every region from late June to late August. The concentration of SARS-CoV-2 RNA in wastewater decreased slightly over the month of September but this is not deemed to be outside of error bounds. However, there is high variability in concentration between individual STWs. Interpretation should be made with careful consideration of the points in the Uncertainty, data quality and revisions section.

Figures 12 to 20 show the 7-day rolling average SARS-CoV-2 concentrations detected in wastewater for each region in England, together with the national average of SARS-CoV-2 concentrations detected in wastewater and individual site data over the 16-week period. Samples where no SARS-CoV-2 was detected are assigned the value 160 (gc/l) which is the theoretical Limit of Detection (tLOD). Data is weighted by catchment population to account for varying catchment sizes. For further information, see Methodology section below.

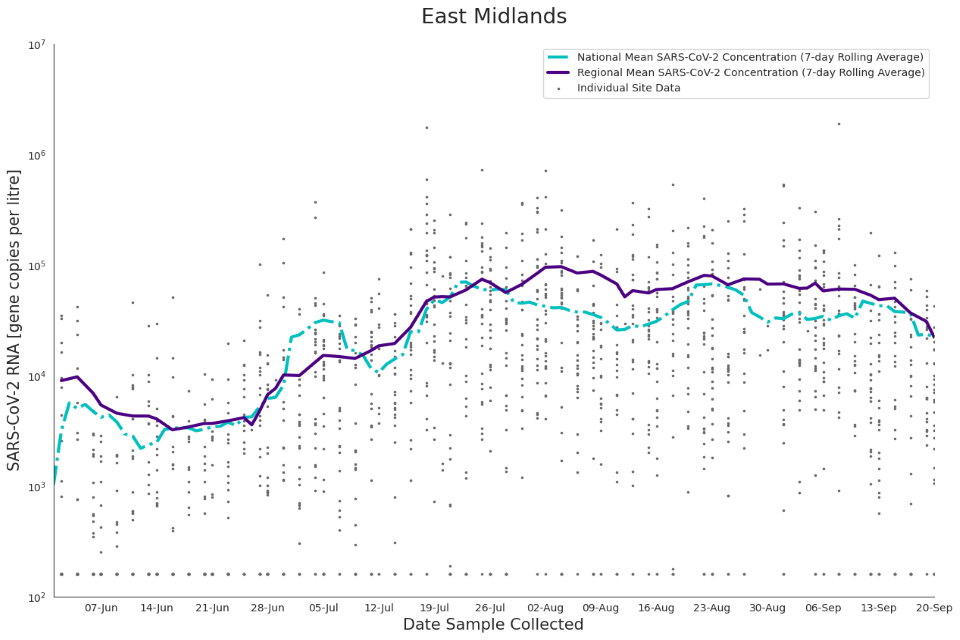

Figure 12. East Midlands 7-day rolling average SARS-CoV-2 RNA concentration.

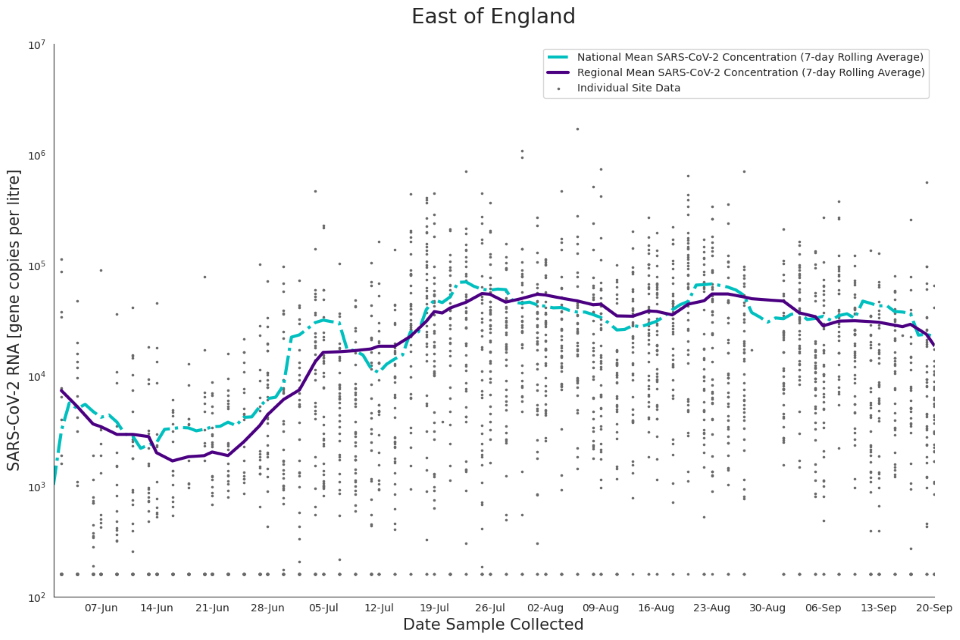

Figure 13. East of England 7-day rolling average SARS-CoV-2 RNA concentration.

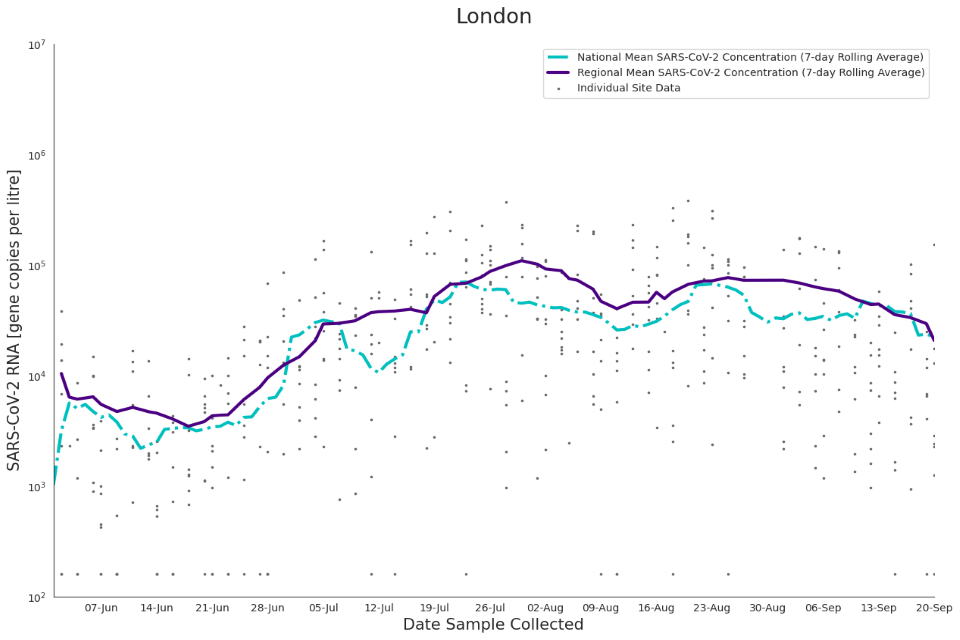

Figure 14. London 7-day rolling average SARS-CoV-2 RNA concentration.

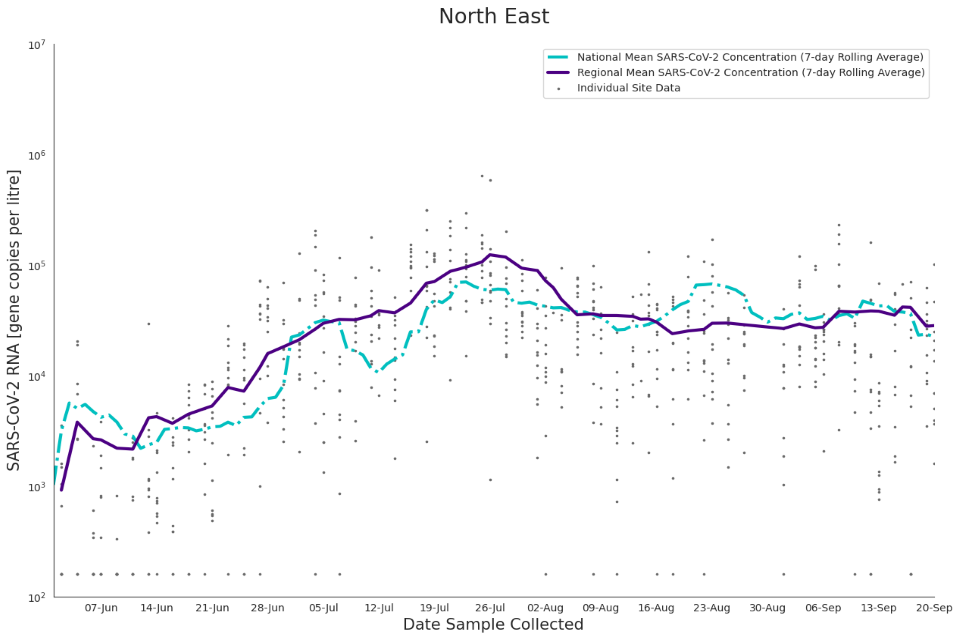

Figure 15. North East 7-day rolling average SARS-CoV-2 RNA concentration.

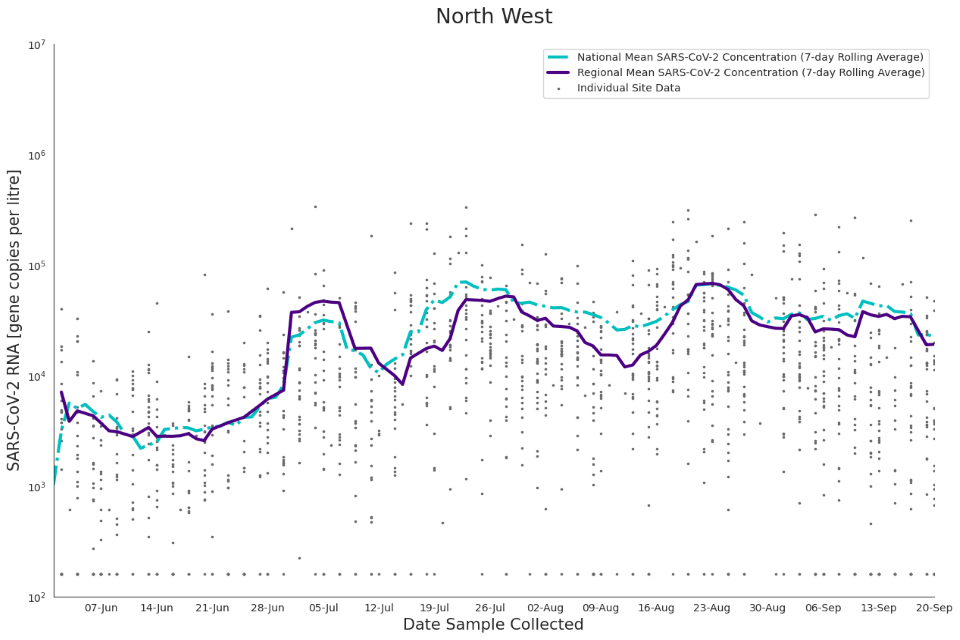

Figure 16. North West 7-day rolling average SARS-CoV-2 RNA concentration.

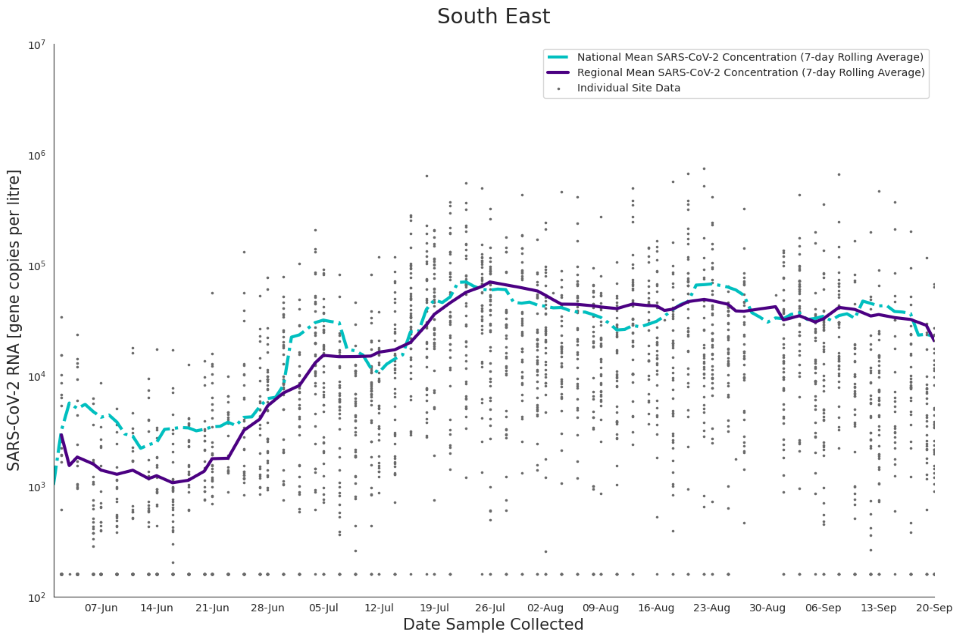

Figure 17. South East 7-day rolling average SARS-CoV-2 RNA concentration.

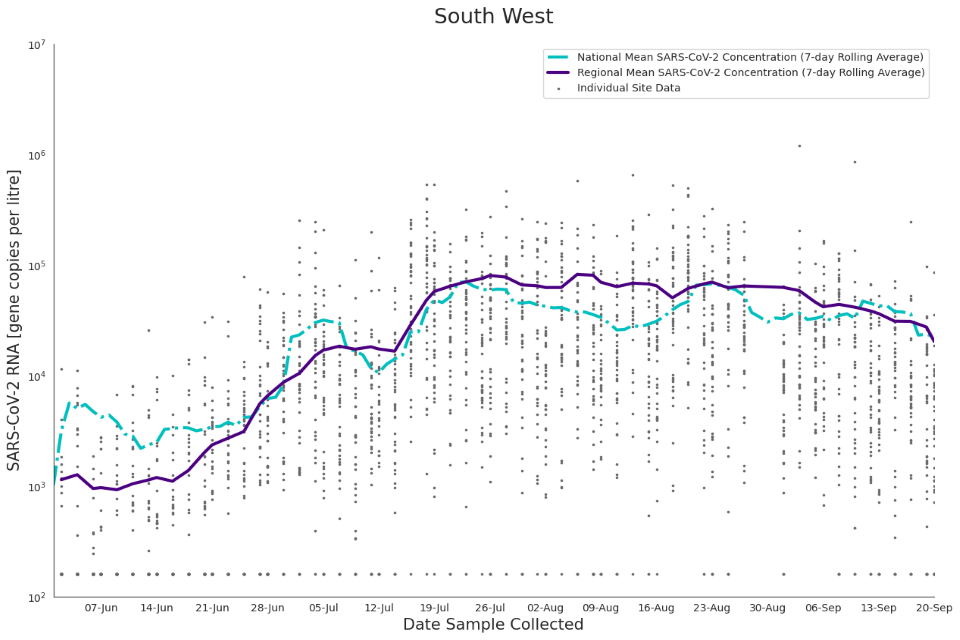

Figure 18. South West 7-day rolling average SARS-CoV-2 RNA concentration.

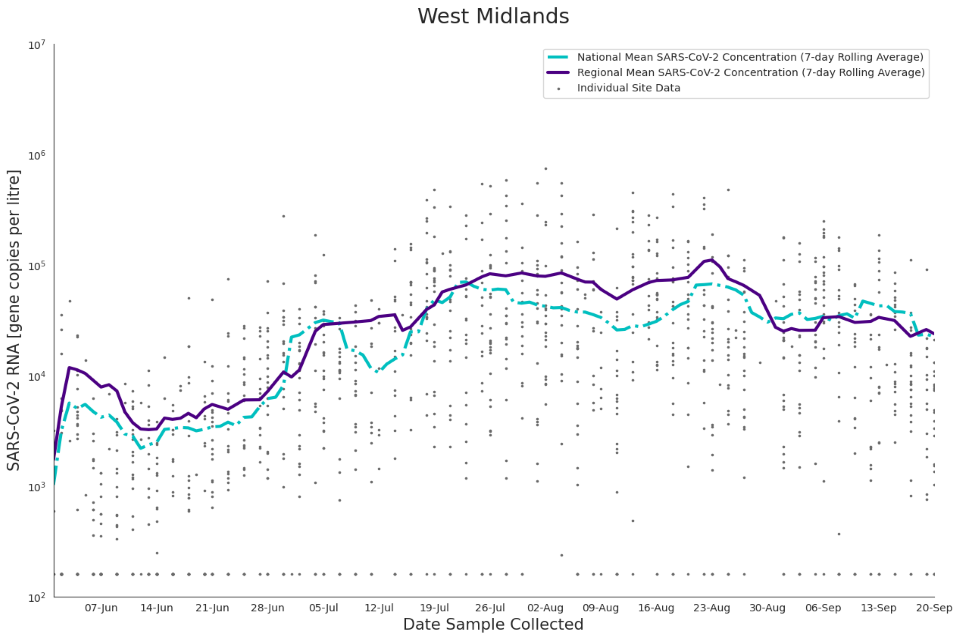

Figure 19. West Midlands 7-day rolling average SARS-CoV-2 RNA concentration.

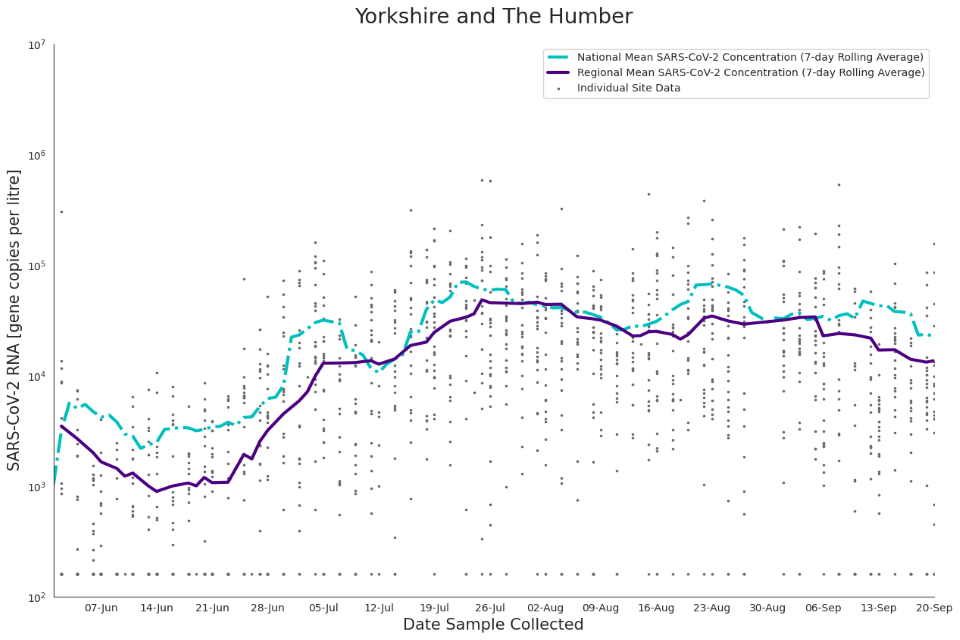

Figure 20. Yorkshire and the Humber 7-day rolling average SARS-CoV-2 RNA concentration.

Methodology

About this data

EMHP samples wastewater from STWs throughout England. Samples are analysed for the concentration of SARS-CoV-2 by quantifying the number of copies of the nucleocapsid gene (N1). Samples are transported to Environment Agency laboratory for quantification of the N1 gene using a process called Reverse Transcriptase Polymerase Chain Reaction. The data reported here is the number of SARS-CoV-2 N1 gene copies per litre of wastewater (shortened to gene copies/litre throughout this document). Generally, the more people with COVID-19 in the community the more viral RNA will be shed into wastewater. Therefore, the concentration in wastewater is indicative of the prevalence of COVID-19 in the community.

Samples are analysed for the concentration of SARS-CoV-2 RNA and concentration is adjusted for flow (see Uncertainty, data quality and revisions). Typically, 4 samples per week are analysed from each STW. However, occasionally fewer samples will be collected and/or analysed. This can be due to several reasons such as EMHP altering sampling strategy because of testing capacity constraints, changing epidemiological priorities and current local response activities.

Weekly Concentration Table and Daily Concentration Table show the concentration of SARS-CoV-2 RNA in wastewater samples (gene copies/litre). Note that there is sensitivity associated with the analysis of wastewater; the Limit of Detection (LOD) is the minimum concentration of SARS-CoV-2 RNA that can be reliably detected. Data tables contain the values ‘tLOD’ where analysis of the sample did not detect presence of SARS-CoV-2 RNA. For the purposes of averaging data to produce weekly averages in the Weekly Concentration Table and Figures 10 and 11, EMHP assigns a concentration of 160 gene copies/litre to all ‘tLOD’ samples. This concentration is the tLOD and is calculated by the Environment Agency. Note that there is uncertainty in this calculation and continuing work to refine it, please see the Uncertainty, data quality and revisions section for further information.

To calculate region averages, data from each STW was weighted by catchment population. To estimate the population of STWs, the catchment areas of STWs are matched to lower layer super output areas (LSOAs). Catchment areas were provided by the 9 water companies serving England. See the EMHP publication Wastewater testing coverage data for the EMHP programme for a detailed description of this method. Regional and national averages were calculated by taking the 7-day rolling arithmetic mean. Figures are displayed on a logarithmic scale for ease of interpretation.

We are exploring the feasibility of adding more data in future releases, such as detection of variants.

Data sources

Wastewater samples are collected by water companies and transported to an Environment Agency laboratory. Concentration data is from Environment Agency analysis of wastewater samples.

Figures in this publication show the location of STWs. These locations were obtained from the European Commission urban wastewater website. Note that names differ between those used in this document and the European Commission urban wastewater website, sites can be linked using the ‘STW Site Code’ in the attached data tables.

The figures and analysis presented will evolve over time to ensure the most relevant information is included and the needs of stakeholders are met. These figures will initially be published monthly, from June 2021, and we will continuously evaluate the frequency and date range based on need and public interest.

How these figures can be used

These figures and data can be used to view the concentration of SARS-CoV-2 RNA in wastewater, which is indicative of prevalence in the community. Due to factors relating to data uncertainty, EMHP recommends interpretation of this data with other data sources such Weekly Statistics for NHS Test and Trace (England).

Uncertainty, data quality, and revisions

The figures here are compiled by professional analysts and have been quality assured. However, the analytical pipeline to produce this data should still be considered experimental; it is subject to an ongoing quality assurance process. Any revisions to past publications will be in line with DHSC’s revision policy and highlighted in future publications accordingly. The sites from which EMHP sample can change on a regular basis depending on testing capacity, epidemiological priorities and current local response activities. This can result in changes to specific STWs covered. This means the STW included in subsequent publications may change.

This publication shows STWs as single points. Every STW has an associated geographical catchment area (area from which wastewater flows into the sampling location). These catchments are not yet presented in these statistics publications. There is uncertainty surrounding catchment geography, as catchments vary in size and population covered, and in some cases an STW may not be located within the catchment it serves (for example, if wastewater is pumped to the STW). Therefore, the location of STW should be used as a general guide only.

Wastewater is an inherently variable material and can change greatly within and between days (foodstuffs being consumed; when washing machines are switched on and many other factors), the physical infrastructure and the type and levels of industrial wastes. It is generally more useful to consider trends over medium- and long-term periods of time, rather than between individual days.

There are several factors that can impact the quality of the signal recorded from wastewater and introduce uncertainty.

1. The concentration of SARS-CoV-2 RNA in wastewater may be impacted by weather, for example, heavy rainfall wastewater may cause dilution. EMHP mitigates this by adjusting concentration to consider flow.
2. Whether samples are ‘composite’ or ‘grab’. Composite samples are where an autosampler (a machine which gathers wastewater at regular intervals over a set time period) gathers wastewater throughout the day. Grab samples are where a single sample is taken at one point in the day and are subject to greater variability; they are influenced by flow characteristics, time of day, and are more susceptible to outliers in the sewage. EMHP aims to mitigate this by sampling during times of peak load and ensuring the sample is collected mid-stream rather than close to the edges or bottom of the pipe.
3. Calculating the LOD (the minimum concentration of SARS-CoV-2 RNA that can be reliably detected in a wastewater sample) can be achieved by several methods. In this data, we have used the tLOD as calculated by the Environment Agency. The tLOD uses several assumptions. Laboratory data is required to inform the more realistic Practical LOD. The Practical LOD for this analysis is not yet reported here. It is likely that the LOD used in producing these statistics will change in future publications. EMHP will clearly state when this occurs.
4. Although the exact value of the LOD is uncertain, it is unlikely to have a noticeable impact on the interpretation of this data. This is because the difference between Theoretical and Practical LOD is relatively small, with most impact at low levels of the target being measured.
5. As explained in the About this data section, typically 4 wastewater samples are taken at each STW per week. The average of all samples within the week is presented in the Weekly Concentration Table. Uncertainty occurs where fewer samples are taken. For example, if only one sample is taken during a week, that one sample defines the week average. This means weeks with fewer samples are more susceptible to variability and outliers. Sample Count Table shows how many samples were taken at an STW for each week in this release.

For the above reasons EMHP advises caution when directly comparing data between STWs and concentrations of SARS-CoV-2 RNA in wastewater with clinical testing data.

If you would like to give user feedback, please email testandtrace.statistics@dhsc.gov.uk
