Independent report

Door open in traffic between Shenfield and Hockley stations, 22 August 2019

Published 27 November 2019

1. Important safety messages

This incident demonstrates that the continued safe operation of train doors is reliant on there being a robust design and suitable inspection and maintenance processes. It highlights in particular the importance of:

• specifying fastenings suitable for the environment and materials in which they are used including, when necessary, specifying and measuring an appropriate torque
• providing a means of identifying if fastenings with a safety critical function have worked loose
• identifying and implementing effective inspection and remedial actions when a safety critical defect is identified

2. Summary of the incident

On 22 August 2019, the 06:35 hrs Greater Anglia service from London Liverpool Street to Southend Victoria travelled 16 miles (26 km) at speeds of up to around 80 mph (128 km/h) while a coach door was open. At the time, the coach was occupied by passengers. The train comprised three, 4-coach class 321 electric multiple units. The open door was on the right-hand side of the third vehicle of the leading unit (unit 321328).

There is no evidence of abnormal door behaviour before the train stopped at Shenfield station, where doors on the right-hand side of the train were opened. When the train driver subsequently operated the door close control, the door involved did not close completely. The partly open door was not apparent from the position where platform staff visually check that doorways are clear of obstructions before a train departs. The door interlock system, designed to detect if any doors are not fully closed, detected that all doors were closed. As a result, the ‘doors open’ indication, given by a yellow hazard light on the coach side, had extinguished and the driver received a visual indication all doors were closed. Because the door interlock system detected that all doors were closed, the train was able to move away when commanded by the driver.

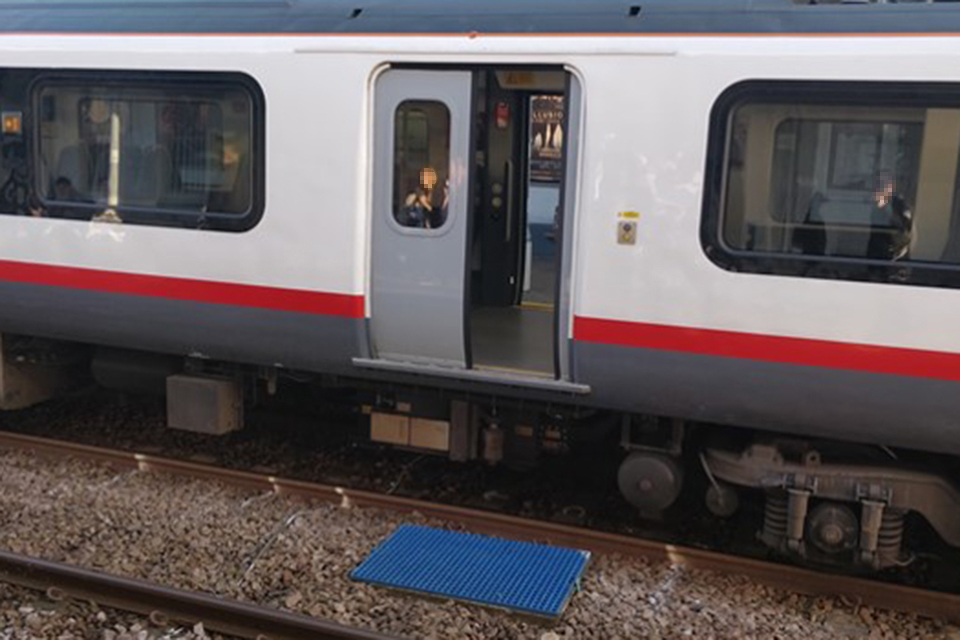

The door involved in the incident, at Hockley station (image courtesy of Tim Neobard). Note: the blue panel below the open door is not part of the train

The train departed from Shenfield at around 06:58 hrs and, during the following 23 minutes, stopped at four stations with platforms on the left-hand side, including Hockley, where a passenger reported the open door to the driver and the train was taken out of service.

Class 321 electric multiple units were built by British Rail Engineering Ltd between 1988 and 1991. The unit involved was owned by Eversholt Rail and was one of thirty refurbished by Wabtec Rail Ltd in a programme running from 2016 to 2019.

3. Cause of the incident

The passenger doorways of a class 321 unit comprise a double-leaf door which is opened and closed by a drive belt powered by a pneumatic piston. The connection between each door leaf and the belt includes a bracket fixed to the leaf by two screws and secured to the drive mechanism by a further two screws.

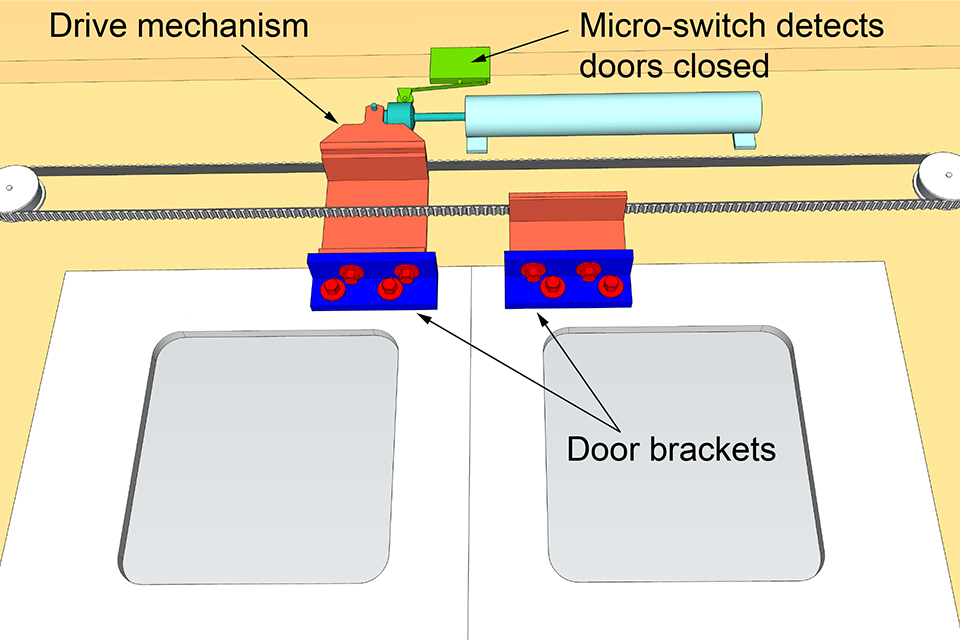

Schematic of door mechanism in the normal condition with doors closed (only relevant components shown, not to scale)

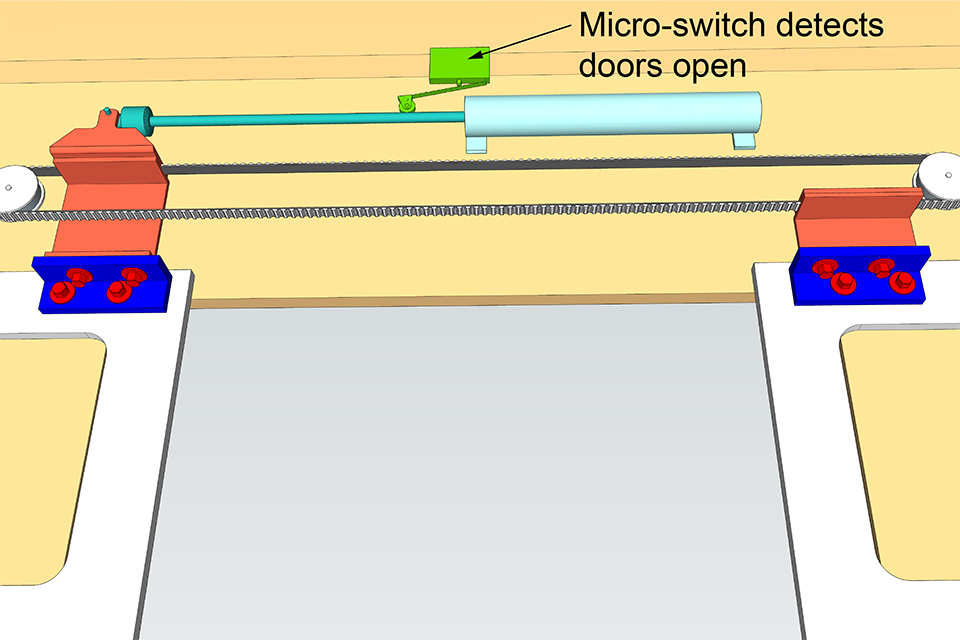

Schematic of door mechanism in the normal condition with doors open (only relevant components shown, not to scale)

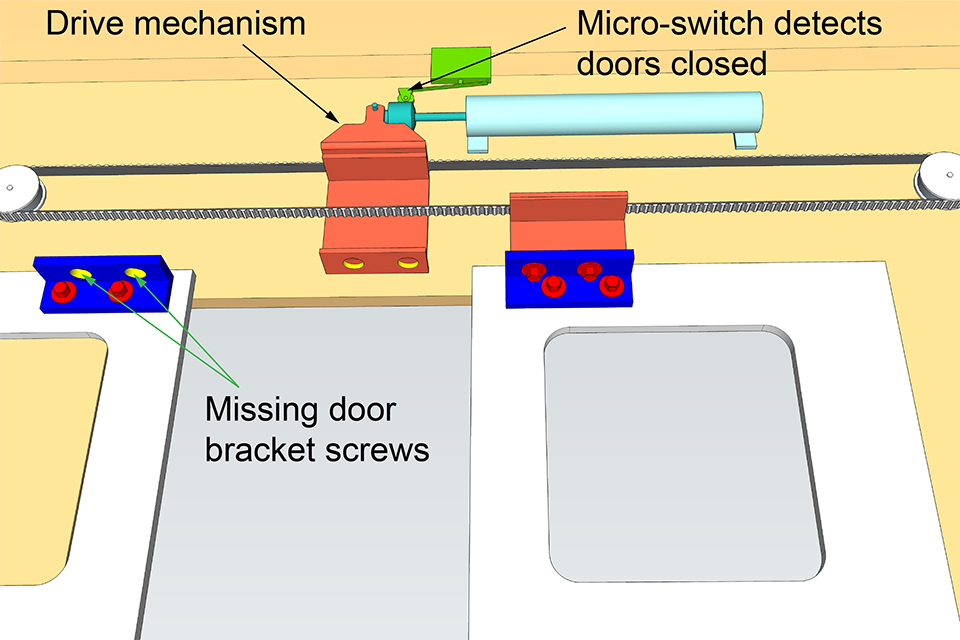

Schematic of door mechanism with one door leaf remaining open because it is detached from mechanism (only relevant components shown, not to scale)

The door leaf which remained open between Shenfield and Hockley had become detached from the drive mechanism because the two screws fixing its bracket to the drive mechanism had worked loose and fallen from the bracket. The two screws and the associated four wedge lock washers were found by the driver, while at Hockley, when he opened a panel giving access to the door equipment. With the screws fallen from the bracket, the door leaf did not respond to movement of the drive belt and was free to open and close in response to the train’s motion.

The interlock circuit on class 321 trains monitors the position of the doors using a micro-switch which detects the position of the drive belt piston rod. This rod moved to the door closed position when the driver operated the ‘doors close’ control at Shenfield so the interlock incorrectly indicated that all the train doors were fully closed.

Refurbishment by Wabtec included providing new screws for the brackets connecting the door to the drive belt. The fastening arrangement was specified by Eversholt document (EV/VI 3216 Task OR3512) as two screws on each bracket flange with a pair of wedge lock washers fitted beneath each screw head, the aim being to avoid the screw working loose. A screw torque of 22 Newton metres (Nm) was given in an associated Eversholt technical procedure. The specification was dated February 2012 and replaced an earlier version which required a different method designed to prevent loosening of the screws at this location.

Wabtec required its staff to paint a yellow mark across the screw head, washer and bracket when they had tightened each screw to the specified torque. This assists maintenance staff to identify any subsequent loosening of the screw, as rotation results in misalignment of the marks.

Wabtec also required that a second person should witness the tightening, check 50% of the screws by applying 80% of the specified torque and then applying a blue dot to the screws which they had checked.

There were no yellow marks on the two screws which fell from the connection between the bracket and the drive belt, and no yellow mark adjacent to the corresponding holes in the bracket. Both these screws carried a blue verification dot. Yellow marks were present on the screws which secured the bracket to the door and one of these also carried a blue dot.

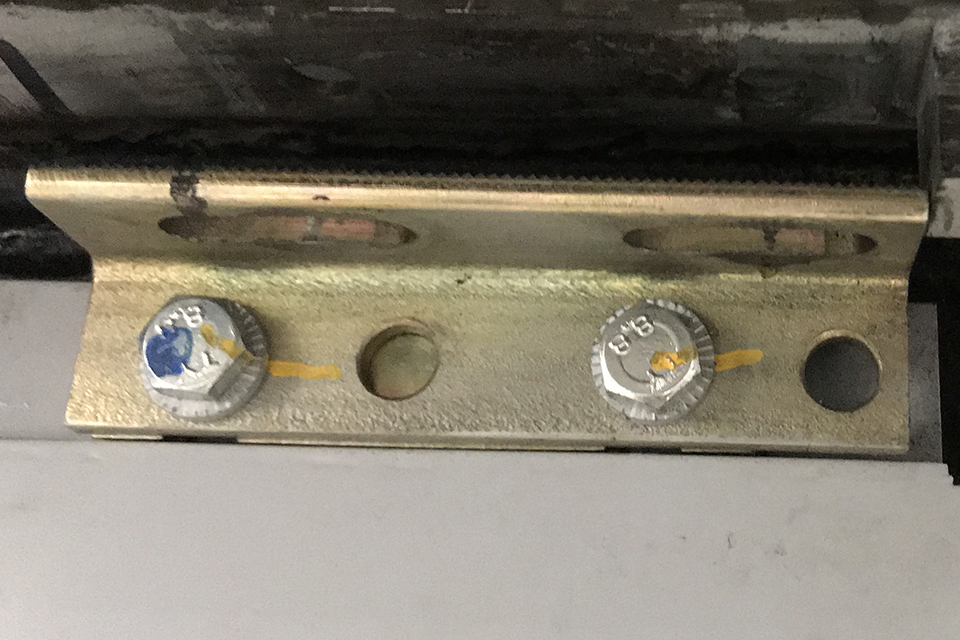

Door bracket with upper flange showing absence of yellow marks on holes from which screws connecting to the drive belt had fallen. Both screws connecting the side flange to the door have yellow marks and one has a blue mark. The other two holes on the side flange were not required to contain screws.

Unit 321328 returned to service with Greater Anglia after refurbishment in January 2019. It underwent a routine maintenance examination on 30 April 2019 which included testing the door mechanism. No faults were noted on the door involved in the incident. A visual check for evidence of the unit’s door bracket screws becoming loose was undertaken on 21 June 2019 as part of surveillance monitoring carried out on several classes of Greater Anglia trains to improve door reliability. In response to reports of ‘binding’ in the incident doorway, adjustments were made to the leaf adjacent to that involved in the incident on 25 June 2019 and on 5 July 2019. The apparent omission of yellow marks during refurbishment meant that one of the visual indications of a loose screw was absent, reducing the likelihood of checks identifying any loosening of the incident screws. The lack of yellow marks on these screws was not reported nor addressed at that time.

Although no loose screws were identified on the incident door bracket, the number of loose screws found by the surveillance monitoring on refurbished class 321 units led to a second check in which Greater Anglia maintenance staff used a plain spanner to assess the tightness of the bracket screws. No torque was specified and the check relied on the subjective judgement of staff, so looseness was probably judged against a torque differing from the 22 Nm torque specified during the vehicle refurbishment. This second check was undertaken on unit 321328 on 2 July 2019, 8 weeks before the incident, with no loose screws found on the door involved in the incident.

After the incident on 22 August 2019, Greater Anglia carried out a further plain spanner check on the door bracket screws of its refurbished class 321 units. Of the 480 doorways on the refurbished units, Greater Anglia staff identified at least one screw which they deemed to be loose on at least 60 doorways; the exact details were not recorded. On a sample of 160 doorways on ten units from the un-refurbished fleet, staff found at least one door bracket screw which they deemed to be loose in each of six doorways. The findings were shared with other train operators by Greater Anglia on 5 September 2019 as national incident report (NIR) 3601.

Following the second plain spanner check, Greater Anglia loosened and re-torque-tightened all door bracket screws on its refurbished class 321 units. When specifying the torque to be applied, Greater Anglia identified an inconsistency between the torque value of 22 Nm specified by Eversholt and the 29 Nm recommended by the wedge lock washer manufacturer. As Greater Anglia believed that the tapped holes in the door would not reliably withstand the wedge lock washer manufacturer’s recommendation, it consulted the wedge lock washer manufacturer when specifying a torque of 25 Nm for this work. Eversholt is reviewing the required torque after commissioning an independent review of the fastening system which recommended that the 25 Nm torque should be maintained.

Greater Anglia has stated that it has introduced an enhanced door bracket screw monitoring programme and will undertake further remedial action if necessary, until it is satisfied that the issue has been resolved.

The lessons learnt from this incident involving class 321 units are likely to have wider applicability as RAIB has identified at least 13 classes of rolling stock currently operating on the British railway network in which doors are connected to drive belts in a manner similar to the class 321 units. A variety of fasteners and thread locking systems are being used when fixing brackets to the door and drive mechanism.

4. Previous similar occurrences

A very similar incident, reported in NIR958, occurred with the same design of doors on a class 150 diesel multiple unit operated by Wales and West on 1 August 1998. As a result of this incident, the vehicle maintenance instruction for the doors was updated and the door bracket screw retention system on class 150 units used by some train operating companies was modified. The units operating in Wales currently use tab washers to prevent the screws from turning.
