Guidance

Share Incentive Plan: technical note

Updated 5 April 2023

1. Changes to the 2022 to 2023 Employment Related Securities (ERS) templates

The changes which have been made to the 2022 to 2023 ERS templates are summarised by relevant template:

• SIP Awards
  • Question 17 ― column title amended
• SIP Out
  • Question 5 ― column title amended, validation amended and completion now mandatory

1.1 Overview

This document is a guide for anybody who needs to report events as part of their Employment Related Securities (ERS) annual return and want to create their own ERS files to capture share related event information during the tax year. You’ll need to create your own file if you decide not to use HMRC templates.

When creating your files, you’ll need to provide all the information that’s relevant to the particular ERS return that you’re making. If the file does not match the technical specification detailed in this guide, it will not be possible to submit the file successfully.

1.2 ERS file attachments

A file can only be accepted in the following formats:

• OpenDocument Spreadsheet (ODS) format (.ods template downloaded from GOV.UK)
• ODS format (.ods spreadsheet created by the user, but matching the HMRC template specification)
• Comma Separated Values (CSV) format (.csv file(s) created by the user, originating from the HMRC ODS downloaded templates.
• CSV format (.csv file(s) created by the user from scratch, must match the HMRC template specification)

The majority of spreadsheet software solutions can use ODS and CSV files. Office packages such as Microsoft Excel, Google Sheets and OpenOffice can convert their native formats into ODS and CSV files.

2. General information about the required format of ODS templates

If you choose to create your own version of an ODS template rather than download the HMRC ODS template, the specifications must meet HMRC requirements. The required formatting is detailed in this guide.

Each file consists of a number of sheets (sometimes called tabs). Each sheet will contain specific share event information for that scheme.

You cannot change the name of any ODS sheet name that you submit. Changing the name of a sheet will result in an error and you will not be able to successfully upload your file. For more detail on the specific sheet names read section 3.2.

2.1 ODS File names

You must use file names less than 240 characters in length. For ODS templates there are no other restrictions on the file name.

2.2 Column Information

You can find information describing the format of each column in section 3 Table information to create a template.

2.3 Template layout

The data in any user created ODS file must meet the required specifications of the HMRC ODS templates. All data must start in Cell A10, any data provided prior to this cell cannot be checked for formatting and will not be identified by HMRC and therefore will not be validated.

2.4 Table headings explained

Section 3 contains tables for each scheme type and name.  There are 6 column headings on each table and you must follow the specifications detailed in this section to create your ODS template.

The following information explains the 6 column headings of the tables.

Column title

All column titles must match the required HMRC formatting detailed in section 3. You must make sure all punctuation and grammar is matched. If the column does not accurately match the technical specification, it will not be possible to submit the file successfully.

Data type

This details whether your response to the question should be numbers, characters (that is letters), or a combination of numbers and characters, and also details the maximum amount of numbers and characters you can provide per cell.

Numbers will either be whole or decimal, the data type column in the section 3 tables show what format they should be in. The maximum size of the number is the whole number part plus any decimal.

For example, ‘NUM11V2’ means data can be up to 14 characters in length. ‘NUM11’ means you can have a maximum of 11 numbers, followed by the ‘V’ which represents the decimal place and the ‘2’ following the ‘V’ means you can have up to 2 numbers following the decimal place, for example (12345678910.12).

Characters (letters) are represented by the term CHAR followed by a number, for example ‘CHAR3’, this is the maximum number of characters (letters) a filed can contain.

Formatting

This details where specific formatting is required and what the formatting should be. If this formatting does not match the technical specification this will result in errors and until corrected you will be unable to successfully upload your ERS return.

Example data

This gives an example of the data format required.

Mandatory, Conditional Mandatory or Optional

This shows a response to the question is either Mandatory (M), Conditional Mandatory (CM) or Optional (O).

Mandatory means a response is always required regardless of any other information provided.

Conditional Mandatory means a response is only required if you have provided the relevant response on a previous question. For example, if a share option has been granted in a Company Share Option Plan (CSOP) then the ‘Date of Grant’ would need to be reported.

Optional means this field can be left blank but should be completed if you know the information requested.

CSV position

‘CSV position’ is only applicable for CSV files.

3. Table information to create ODS templates

The following sections contain the information you require to create your own ODS templates.

3.1 Share Incentive Plan ODS file downloads

If you choose to use the HMRC ODS template, you can download the Share Incentive Plan: end of year template.

3.2 Share Incentive Plan Sheet titles

The Share Incentive Plan spreadsheet contains 2 sheets (sheet titles must be entered exactly as shown in the table).

Sheet Number	Title
1	SIP_Awards_V4
2	SIP_Out_V4

3.3 Shares awarded lookup (for use in SIP_Awards)

This table will help you in completion of the SIP_Awards template question 3

No.	Description
1	Matching
2	Free
3	Partnership
4	Dividend

3.4 Share Incentive Plan Shares awarded formatting guide (SIP_Awards_V4)

This table details the information and the format in which it is required when creating your own ODS template. Although the questions in this table are shown vertically, when creating your ODS the questions must be entered horizontally with the relevant information entered under each question column and each row showing the data per individual employee you are reporting on.

For example, this sheet has 17 questions therefore the questions should be shown from cell A to Q in row 9, and if you report changes to 3 employees this would require the information to be entered in 3 rows, from row 10 to row 13.

Column Title	Data Type	Formatting	Example data	Mandatory, Conditional Mandatory or Optional	CSV position
1. Date of event (yyyy-mm-dd)	DATE	yyyy-mm-dd	2014-12-24	M	1
2. Number of employees who acquired or were awarded shares	NUM6	—	1000	O	2
3. Type of shares awarded Enter a number from 1 to 4 depending on the type of share awarded. Follow the link at cell A7 for a list of the types of share which can be awarded	NUMBER	See ‘Shares awarded’ Table	2	M	3
4. If free shares, are performance conditions attached to their award? (yes/no)	CHAR3	YES/NO	YES	CM	4
5. If matching shares, what is the ratio of matching shares to partnership shares? Enter ratio for example 2:1; 2/1	CHAR4	1:2 or 1/2	2:1	CM	5
6. Unrestricted market value (UMV) per share on acquisition or award £ e.g. 10.1234	NUM13V4	4 decimal places	10.1234	O	6
7. Total number of shares acquired or awarded e.g. 100.00	NUM11V2	2 decimal places	2.50	O	7
8. Total value of shares acquired or awarded £ e.g. 10.1234	NUM13V4	4 decimal places	25.1123	O	8
9. Total number of employees whose award of free shares during the year exceeded the limit of £3,600	NUM6	—	1000	O	9
10. Total number of employees whose award of free shares during the year was at or below the limit of £3,600	NUM6	—	1000	O	10
11. Total number of employees whose award of partnership shares during the year exceeded the limit of £1,800	NUM6	—	1000	O	11
12. Total number of employees whose award of partnership shares during the year was at or below the limit of £1,800	NUM6	—	1000	O	12
13. Total number of employees whose award of matching shares during the year exceeded the limit of £3,600	NUM6	—	1000	O	13
14. Total number of employees whose award of matching shares during the year was at or below the limit of £3,600	NUM6	—	1000	O	14
15. Are the shares listed on a recognised stock exchange? (yes/no)	CHAR3	YES/NO	YES	M	15
16. If no, was the market value agreed with HMRC? (yes/no)	CHAR3	YES/NO	YES	CM	16
17. If yes, enter the HMRC valuation reference given	CHAR 10	—	12345678 or qq123456	CM	17

3.5 Share Incentive Plan Shares Out formatting guide (SIP_Out_V4)

This table details the information and the format in which it is required when creating your own ODS template. Although the questions in this table are shown vertically, when creating your ODS the questions should be entered horizontally with the relevant information entered under each question column and each row showing the data of each individual employee you are reporting on.

For example, this sheet has 17 questions therefore the questions should be shown from cell A to Q in row 9, and if you report changes to 3 employees this would require the information to be entered in 3 rows, from row 10 to row 13.

Column title	Data type	Formatting	Example data	Mandatory, Conditional Mandatory or Optional	CSV Position
1. Date of event (yyyy-mm-dd)	DATE	yyyy-mm-dd	2015-01-30	M	1
2. Employee first name	CHAR35	—	John	M	2
3. Employee second name (if applicable)	CHAR35	—	S	O	3
4. Employee last name	CHAR35	—	Smith	M	4
5. National Insurance number	CHAR9	This should be in the format AANNNNNNA, the last character should be alpha	QQ123456A	M	5
6. PAYE reference of the employing company	CHAR14	—	123/XZ55555555	M	6
7. Number of free shares ceasing to be part of the plan e.g. 100.00	NUM11V2	2 decimal places	25.00	O	7
8. Number of partnership shares ceasing to be part of the plan e.g. 100.00	NUM11V2	2 decimal places	50.22	O	8
9. Number of matching shares ceasing to be part of the plan e.g. 100.00	NUM11V2	2 decimal places	150.50	O	9
10. Number of dividend shares ceasing to be part of the plan e.g. 100.00	NUM11V2	2 decimal places	250.11	O	10
11. Unrestricted market value per free share at date ceased to be part of the plan £ e.g. 10.1234	NUM13V4	4 decimal places	1250.1000	O	11
12. Unrestricted market value per partnership share at date ceased to be part of the plan £ e.g. 10.1234	NUM13V4	4 decimal places	125.8758	O	12
13. Unrestricted market value per matching share at date ceased to be part of the plan £ e.g. 10.1234	NUM13V4	4 decimal places	250.0000	O	13
14. Unrestricted market value per dividend share at date ceased to be part of the plan £ e.g. 10.1234	NUM13V4	4 decimal places	7540.1234	O	14
15. Have all the shares been held in the plan for 5 years or more at the date they ceased to be part of the plan? (yes/no) If yes, no more information is needed for this event. If no, go to question 16	CHAR3	YES/NO	YES	M	15
16. If no, for other than dividend shares, was PAYE operated? (yes/no)	CHAR3	YES/NO	NO	CM	16
17. If no, does this withdrawal of shares qualify for tax relief? (yes/no)	CHAR3	YES/NO	YES	CM	17

4. Creating a CSV file

If you have a large amount of data or are a Mac user and you decide to create a CSV file, the following sections cover how to do this. If you are a Mac user you may find the ODS template is not compatible and therefore will have to create a CSV of your own. You can read more about creating your own CSV from scratch in section 4.4.

If you are able to download the HMRC ODS template you can use this as the basis for your CSV. The advantages of producing your CSV from the HMRC ODS downloaded template means all the formatting will be applied to the sheet.

All column titles in your CSV file must match the required HMRC formatting in section 3.

Once you have created the CSV if you save and reopen it, the formatting may be lost.

4.1 Creating CSV files for your annual return from the HMRC ODS template

When creating CSV files from the HMRC ODS Template, you first must download the relevant HMRC ODS template.

When you create a CSV you’ll need to produce one CSV file per ‘sheet’ that you’ll be using in a return. When starting with the downloaded ODS template only complete one sheet at a time, before saving as a CSV and moving on to complete a different sheet (if applicable).

For example, the ODS template for scheme type ‘ SIP’ contains 2 separate sheets, if you need to complete more than one of these sheets, you must complete one sheet at a time and save it before re-opening the ODS template to populate the subsequent sheets.

Each sheet you make entries within and save must be saved using the relevant file and sheet name. The system will ask you to upload all the CSVs for each registered scheme at the same time.

4.2 CSV sheet and File names

CSV file names must consist of the name of the sheet being submitted, followed by ‘.csv’. For example, a Share Incentive Plan return could consist of 2 files, ‘SIP_Awards_V4.csv’, and ‘SIP_Out_V4.csv’.

You can read about all relevant file names in section 3.2. The sheet names will be displayed when you open the HMRC ODS Template, this is case sensitive and must be used on your CSV sheet name as well as for the CSV file name. This will be a different sheet and file name for each sheet you submit.

4.3 Saving as a CSV file

Save each CSV file that you create within a local drive or on your desktop. You’ll need to upload this file as part of your annual return.

You can change your ODS template into a CSV. This is done at the point of saving the document. To save the file as a .csv file:

• select ‘file’ and ‘save as’
• input the file name as described in section 3.2, ensuring you put .csv at the end of the file name, for example ‘SIP_Out_V4.csv’

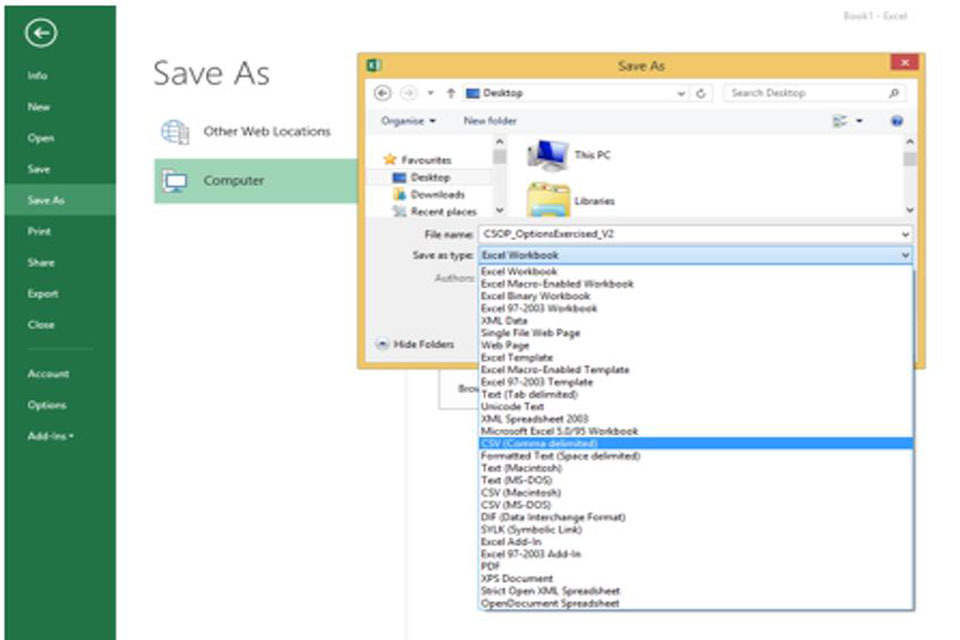

Select ‘CSV (Comma delimited)’from the ‘Save as type’ dropdown menu as shown in the screen shot, then select ‘Save’.

Image showing screen of how to save as a CSV file.

4.4 Creating your own CSV from scratch

If you are unable to download or open the ODS you will need to create your own CSV. When creating CSV files to use in your upload, you’ll need to produce one CSV file per ‘sheet’ that you’ll be using. The system will allow you to upload all the CSVs for each registered scheme at the same time. For example, a Share Incentive Plan scheme could include up to 2 separate CSV files. When using the system you’ll be prompted to upload all the files that you’ve completed.

When creating a CSV file from the ODS template, you need to delete all the prefilled information from the first 9 rows (the guidance and headers). If you’re using Excel to create your CSV, your data must start from cell A1 and must follow the expected sequence and formatting relative to the type of return you’re making. The remainder of data required in the CSV must follow the expected sequence and formatting depending on the type of return you are making, this information

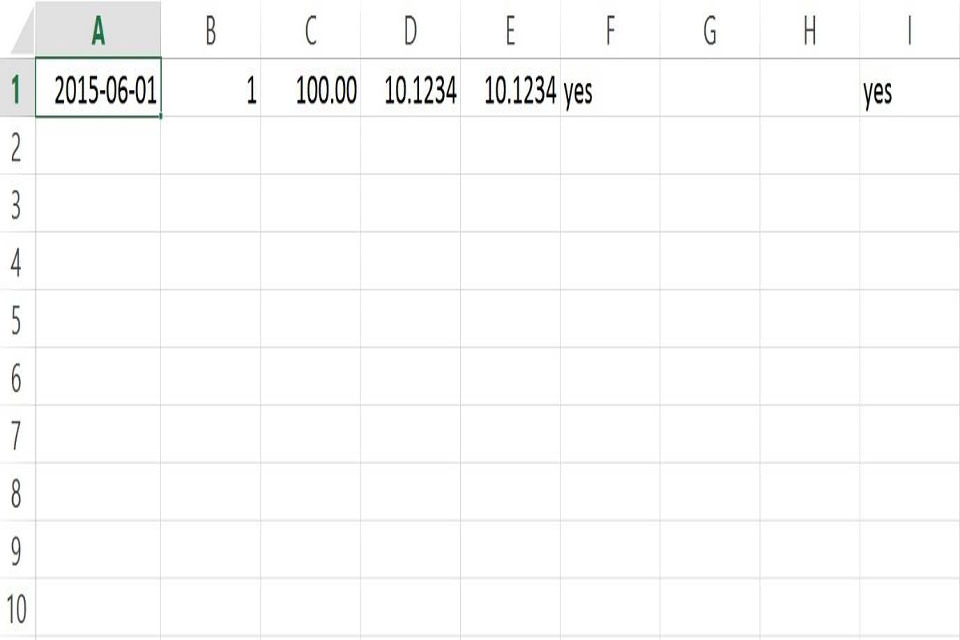

The screenshot gives an example of what a CSV document will look like when created in Excel (you can also create this in Libre office). Once you have populated all relevant cells you need to save this as a CSV file.

CSV filenames must consist of the name of the sheet being submitted, followed by ‘.csv’. For example, ‘SIP_Awards_V4.csv’, note this is case sensitive.

This image shows what a CSV document will look like when created in Excel.

Tables describing the format of each column (by scheme type and by sheet name) can be found in the tables from section 3.4 to 3.5. The last column in each table shows the position where each specific column must appear in each specified CSV file.

4.5 Formatting the files

As commas are being used to separate the data, you must not include extra commas within a cell, for example an address that contained a comma would be rejected.

All data must be comma separated. If you need to include data that contains extra commas in it (for example, in the name of a company) then you must enclose that piece of data within double quotes.

4.6 Group schemes

Your return may include other companies who share in the benefits of that scheme. The way that we refer to these will depend on the type of scheme that you’re using.

If you’re using a Share Incentive Plan, they’re called ‘group plans’.

The ERS returns service gives you 2 methods for providing this information. You can upload it in a CSV file or enter it manually. You have a maximum limit of 150 rows of data you can include for group schemes.

You’ll need to read section 4.7 if you’re using a CSV file to provide the information.

4.7 Submitting group company information as a CSV

The following table shows the information that a CSV upload of group company information can contain.

Position	Name	Format
1	Company Name	Text (120)
2	Address Line 1	Text (27)
3	Address Line 2	Text (27)
4	Address Line 3	Text (27)
5	Address Line 4	Text (18)
6	Zip/Postcode	Text (8)
7	Country	Text (18)
8	Company Reference Number	Text (10)
9	Company Tax Reference	Text (10)
