AAIB Report: Safe overflight of people by Unmanned Aircraft Systems
Safety Recommendations concerning loss of control of DJI Matrice 200 series Unmanned Aircraft Systems and overflight of people.

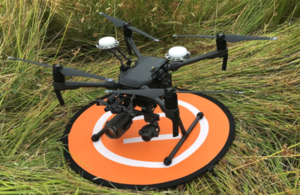

The Air Accidents Investigation branch has published its January 2020 bulletin which contains details of the first investigations into Unmanned Aircraft Systems (UAS) that have resulted in AAIB Safety Recommendations. In total eight investigations into UAS are published, including one field investigation into the DJI Matrice 210.
The DJI Matrice 200 series aircraft crashed whilst operating in rain. The accident had been caused by a fault with the No 4 motor electronic speed controller (ESC). Moisture was also found on the No 3 motor ESC, but it was not established if this contributed to the accident. However, this investigation reviewed other similar accidents and information showed that other Matrice 200 series accidents involving aircraft operating in rain had been caused by ESC failures due to moisture ingress. Other types of DJI Matrice 200 series failures included contamination of the motors by fine particles that the unit did not provide protection against.
Failures of the Matrice 200 series aircraft resulted in a loss of power and control, with the aircraft typically falling vertically to the ground. This poses a risk of injury to people on the ground which is not mitigated by the current UK regulations or published guidance material applicable to operating an unmanned aircraft system.
To address this the following two Safety Recommendations are made to the UK CAA:
Firstly, it is recommended that the Civil Aviation Authority notify users of the DJI Matrice 200 series of the possibility of moisture entering the aircraft when operating in rain and that this could result in a sudden loss of control of the aircraft.
Secondly, it is recommended that the Civil Aviation Authority specify the conditions that must be met for an unmanned aircraft to be flown safely over people.
